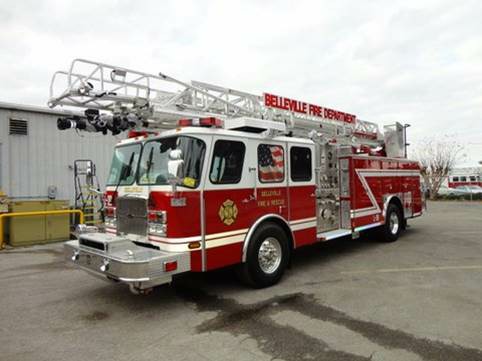

Aerial Ladders

HP 75 (23m) & HP 78 (23.77m)

  • CII chassis with medium length cab standard; Long length cab available
  • 5.84m wheelbase (medium cab with pump)
  • Aerial rated at 227 kg flowing 3,800 L/min
  • 4.87m Jack spread
  • 1,800 L Water tank
  • 4,800 – 7,500 L/min Hale fire pump
  • Foam tank and foam system available
Quick Spec

HP 100 (30.48m) & HP 110 (33.53m) – also available as a Metro QUINT single rear axle configuration

  • CII chassis with integral torque box frame
  • Medium length cab standard; Long length cab available
  • 5.84m wheelbase (medium cab with pump)
  • Aerial rated at 250 kg flowing 3,800 L/min at 46°-82° elevation
  • 3.6m Jack spread
  • 1,800 L Water tank
  • 4,800 – 7,500 L/min Hale fire pump
  • Foam tank and foam system available
Quick Spec

HP 100 – 30.48m

  • CII chassis with integral torque box frame
  • Medium length cab standard; Long length cab available
  • 6.35m wheelbase (medium cab with pump)
  • Platform rated at 365 kg flowing 3,800 L/min
  • 4.7m Under slung criss-cross jack spread
  • 1,100 L Water tank
  • 4,800 – 7,500 L/min Hale fire pump
  • Foam tank and foam system available
Quick Spec

CR 137 – 41.75m

  • CII chassis with integral torque box frame
  • Medium length cab standard; Long length cab available
  • 6.35m wheelbase (medium cab with pump)
  • Aerial rated at 250 kg flowing 3,800 L/min at 31⁰-80⁰ elevation
  • 4.2m Under slung criss-cross jack spread
  • 1,100 – 1,800 L Water tank
  • 4,800 – 7,500 L/min Hale fire pump
  • Foam tank and foam system available
Quick Spec
